Confidence and Capability - with the Case Excavator Hydraulic Pressure Test Kit

This hydraulic pressure test kit for your Case excavator is used to test the hydraulic system at all levels of pressure. This kit will be equipped with the connectors/couplings for your specific Excavator.

Features:

• Hydraulic pressure test kit for your specific Case excavator (choose above)
• Contains Hydraulic test point couplings and pressure gauges

• Max pressure: 9000PSI/600BAR/60MPa.
• Aluminum suitcase, lightweight, portable,
• Easy to maintain with a simple wipe clean

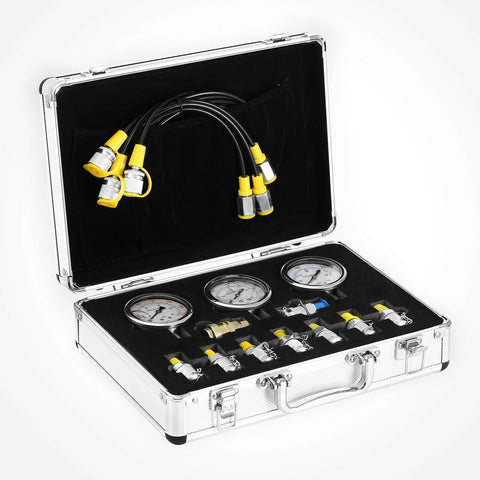

• Contains 9 test couplings and 3 pressure gauges

Package countains:

1 x Aluminum case

3 x Pressure gauges

• Pressure gauge: Ø63mm-25MPa(25MPA/250Kg/c㎡)
• Pressure gauge: Ø63mm-40MPa(40MPA/400Kg/c㎡)
• Pressure gauge: Ø63mm-60MPa(60MPA/600Kg/c㎡)

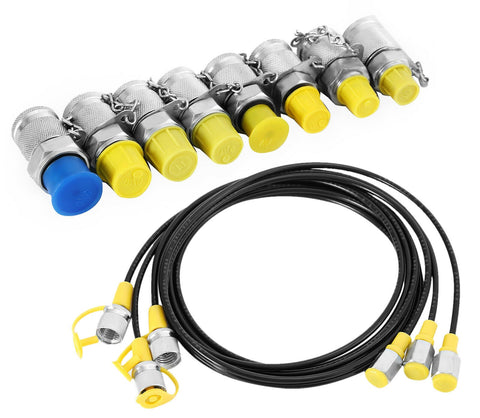

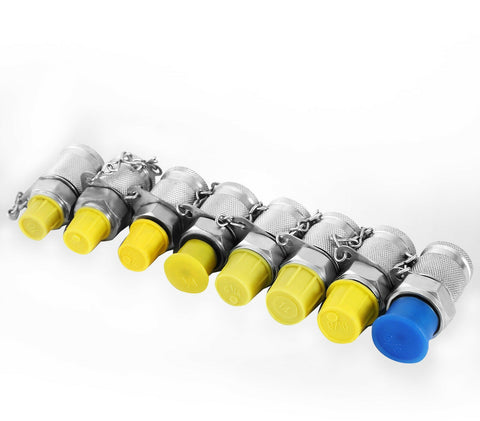

9 x Test couplings

• Test coupling: G1/8
• Test coupling: G1/4
• Test coupling: G3/8
• Test coupling: M10/1
• Test coupling: M10/1.25
• Test coupling: M14/1.5
• Test coupling: UNF7/16-20
• Test coupling: UNF9/16-18
• Quick connector

3 x Test hoses (1.5m/4.9ft in length)

Choose your Case model from the drop down list above.

Shipping is Free to all US states.
